1.

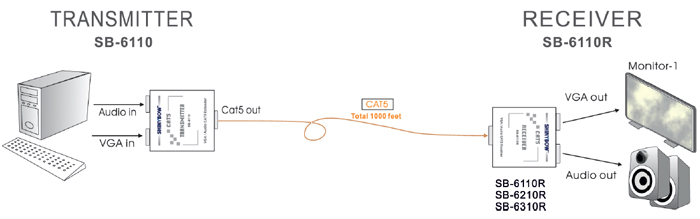

Support VGA-RGBHV & Stereo Audio(AR/AL) CAT-5 Transmitter and Receiver Extender.

2.

Input : 1x CAT5

3.

Output : 1x VGA+Audio

4.

Support PC Resolution VGA(640x480) / SVGA(800x600) / XGA(1024x768) / SXGA(1280x1024) / UXGA(1600x1200), WUXGS(1900x1200)

5.

Support HDTV Resolution 480p / 720p / 1080i / 1080p

6.

Adjustment buttons of RGB. Brightness and TINT on SB-6110R

7.

Extension distance is up to 100m(330ft) for SB-6110R and 300M (1000ft) for SB-6110R2

8.

Wall mounted Ear Rack included

Type of CAT5

Transmitter (TX) / Receiver (RX)

Type of Signal

VGA (RGBHV) & Stereo Audio (AR/AL) connectors

Video Bandwidth

Large signal Bandwidth : 225Mhz, -3dB
Small Signal Bandwidth : 450Mhz, -3dB

Output balance error

-60dB @ 50Mhz

High Isolation between Amplifier

80dB @ 10Mhz

Audio-In Impedance

10 Ohms

Audio Frequency Response

20HZ to 20KHz, +/-1db

Safety Approvals

CE, FCC, VCCI

Dimension (WxDxH)

2.87" x 2.6" x 1.15" (73mm x 66mm x 29.1 mm)

Power Supply

DC 12V /1A Max
Use Universal Switch Type 50/60Hz, 100~240VAC

Weight

0.17 kg / 0.37 lb
