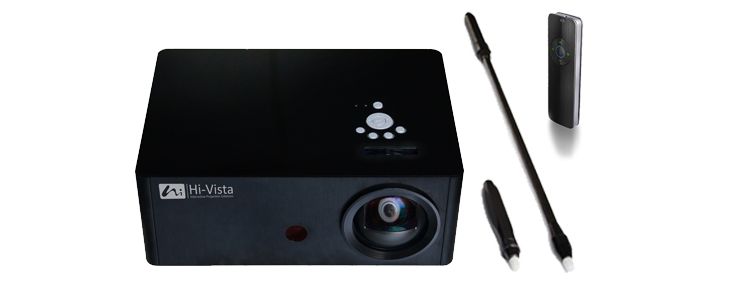

Projector
|
Native resolution
|
1024*768
|
Display technology
|
DLP (0.55" DMD)
|
Brightness
|
2500 ANSI lumens
|
Contrast Ration
|
2500:1
|
Throw Distance
|
1m-4m (80''~320'')
|
Lamp
|
230W SHP
|
Lamp life
|
4000Hrs
|
Projection Method
|
Ceiling, Front, Rear
|
OSD Languages
|
Multi language(English, German, Spanish, Portuguese)
|
Interactive Function
|
Movement Detection Technology
|
Infrared
|
Active Area(max projection size)
|
120 inch diagonal
|
Active Area(horizontal angle)
|
33+/- 2 degrees
|
Active Area(vertical angle)
|
0-30 degrees
|
Calibration Technology
|
Infrared Positioning
|
Active Distance(from projection screen)
|
0.2 - 3 m
|
Connectivity Interface
|
1 x USB Cable (connection distance up to 24 m)
|
Power Requirement
|
DC 5V (from USB port)
|
Power Consumption
|
< 1.5 W
|
E-pen
|
Movement Detection Technology
|
LED light
|
Power requirement
|
3V CR 123A x1
|
Pen Body Dimension
|
13.2cm(length); 2cm(diameter)
|
Weight
|
45g
|
E-pointer
|
Movement Detection Technology
|
LED light
|
Control buttons
|
1 button(left and right click of a mouse) ,touchable
|
Power requirement
|
3V CR 123A x1
|
Weight
|
90g
|
Length
|
56cm
|
Micro PC
|
CPU
|
Intel (R) Core (TM) i3 CPU 3.00GHz /i5 (optional)
|
Main board Chipset
|
Intel H61
|
Memory capacity
|
4 GB
|
Hard Disk
|
320G/500G
|
Display Chip
|
Integration Intel GMA950 Video Card
|
Network Card
|
Internal wireless network card IEE802.11b+g,Ethernet adaptive card
|
Standard interface
|
USB2.0 port×3
|
Electric Power Source
|
DC20V port
|
Input interface
|
VGA *1, Video*1, S-video*1, Component*1, Audio in(L/R)
|
Output interface
|
VGA*1;Audio(mini-jack)*1
|
Card Reader
|
Built-in, Three-in-one
|
Motion Presenter
|
Power Supply
|
Lithium battery
|
Charging Source
|
DC5V/400mA
|
Working Voltage
|
5V
|
Maximum Operating Current
|
20mA
|
Sleep Current
|
20uA
|
Maximal Exercise Acceleration
|
2g
|
Maximal Transmission Range
|
20m
|
The Way of Working
|
2.4G RF
|
Service Program
|
Support XP,VISTA,WIN7
|
Quantity of Key
|
5
|
Product Size
|
130mm*38mm*14mm
|
